Description

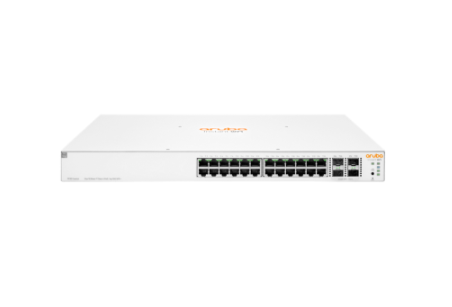

Aruba JL684B HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.
Power consumption490.0 W maximum, 30.0 W idle
Input voltage100 – 127 / 200 – 240 VAC
Ports24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
Switching capacity128 Gbps
Throughput95.23 Mpps, maximum
Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
PoE capability370 W Class 4
Management featuresAruba Instant On Portal, Web browser, SNMP Manager
WarrantyLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration
Weight3.73 kg (8.23 lb)
Dimensions4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in)
